BBCX1000 SCHNABEL RAILCAR
LET OUR KNOWLEDGE AND EXPERTISE WORK FOR YOU.

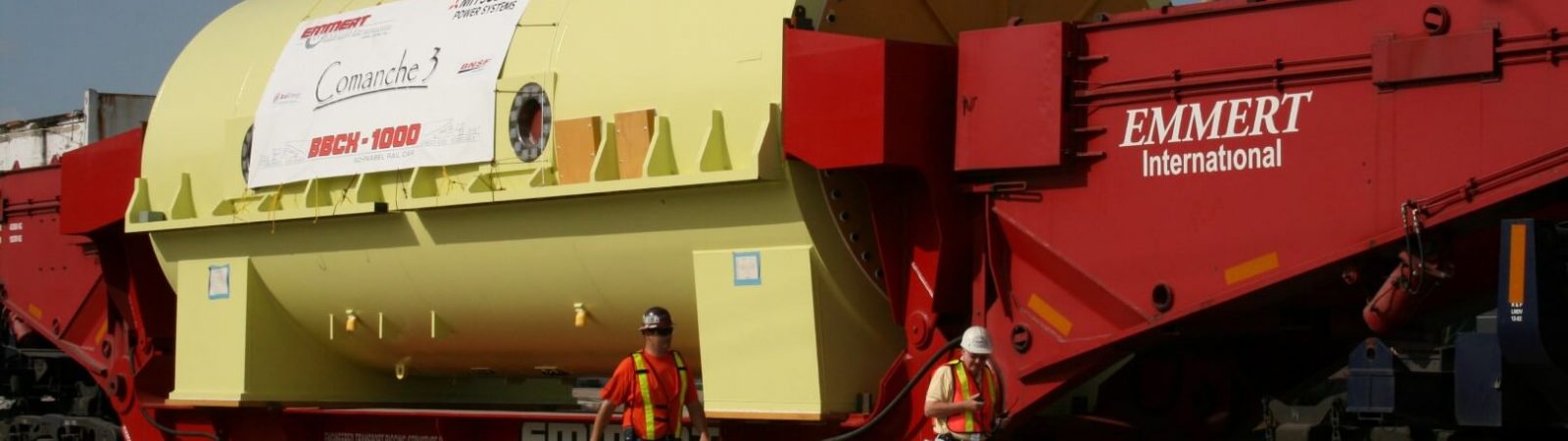

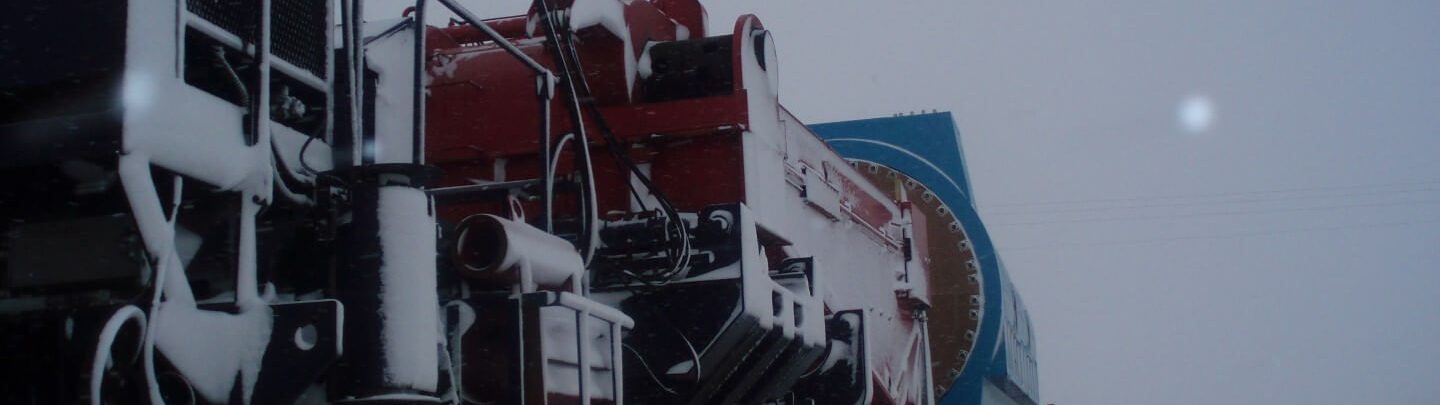

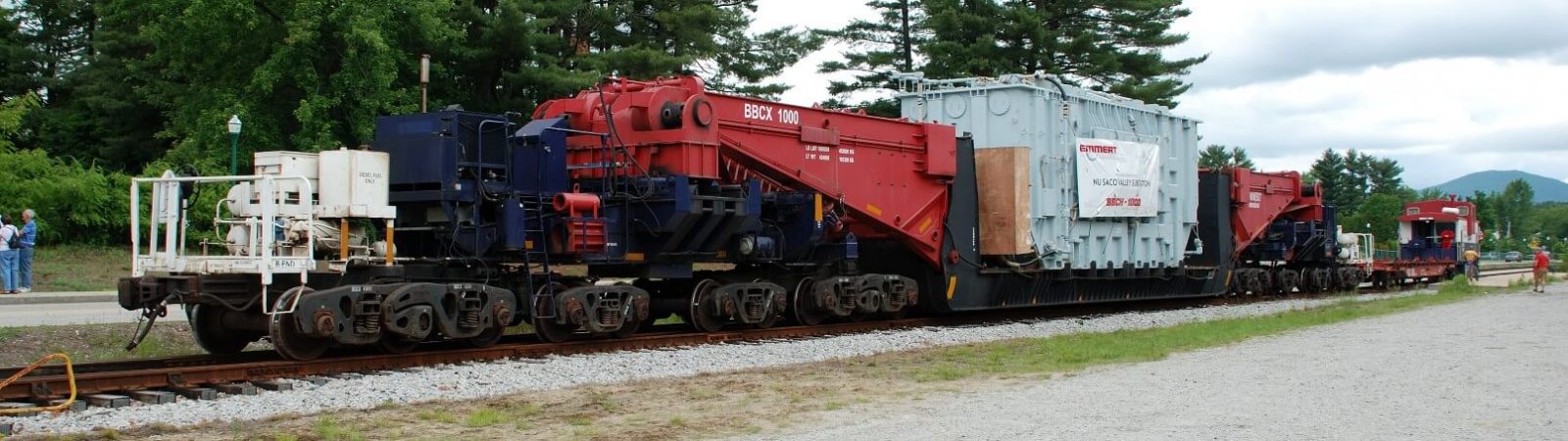

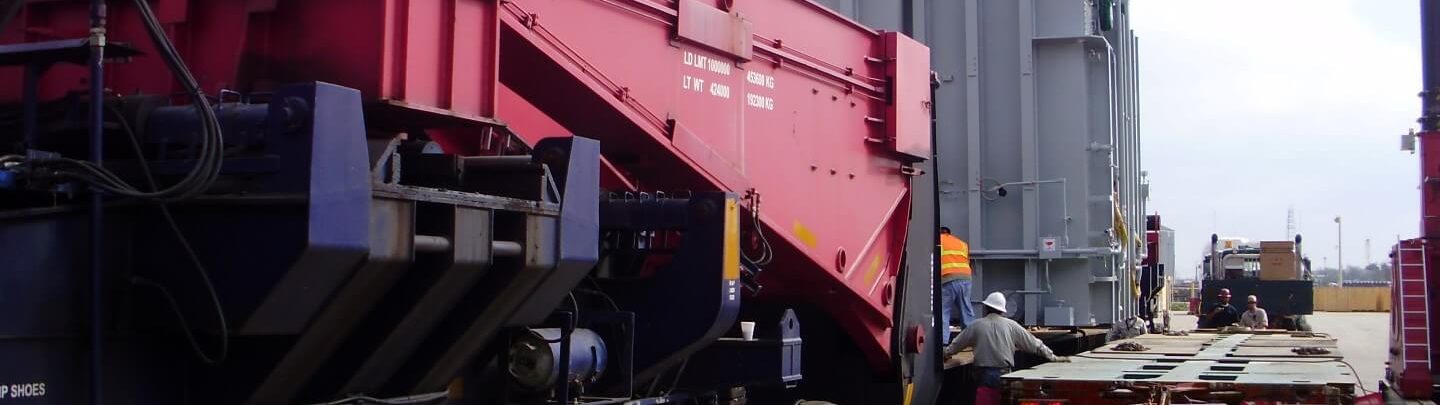

Emmert International’s BBCX1000 Schnabel Railcar is specifically designed to carry heavy (up to 1 million pounds) and oversized loads in such a way that the load itself makes up part of the car. The load is suspended between the two ends of the cars by lifting arms; the lifting arms are connected to a pivot above an assembly of pivots and frames that carry the weight of the load and the lifting arm.
For loads not designed to be part of the car Emmert International’s BBCX1000 is equipped with a deck designed to carry the loads in standard configuration up to 836,000 pounds. Customized decks can be manufactured to increase the overall payload weight. Emmert International’s BBCX1000 is equipped with hydraulic equipment that will either lift the load vertically or horizontally shift the load while in transit to clear obstructions along the car’s route.
With 20 axles (ten for each half) containing four trucks connected by a complex system of span bolsters its tare (unloaded) weight without deck is 424,000 lbs. The BBCX1000’s empty car length is 115’ 10” with a maximum length with the loading deck at 168’ 9”. Maximum vertical load shifting ability is 14” and the maximum horizontal load shifting ability is 22”. The heavy duty AAR railcar mechanical designation is “LS”.
Emmert International’s BBCX1000 Schnabel Railcar is accompanied by the BBCX 1002 Caboose and BBCX1003 flat car that carries the deck when not in service. The BBCX1000 is pulled by special train service and requires 2 operators. When in transport not carrying loads the BBCX is limited to 40 mph. When loaded or empty with deck in place the BBCX1000 is limited to 25 mph.
SEE SCHNABEL RAILCAR SPEC (680KB PDF)
The BBCX1001 is a 12-axle Flat Deck Heavy Duty Railcar. The BBCX1001 adds to Emmert International’s expanding rail fleet with a 45′ platform length, 10′ 8″ platform width, and is capable of transporting 740,000 lbs.
BBCX1003 is used for is to transport the deck of the BBCX1000 Schnabel car when it is not in use.
BBCX1002 Caboose is the living quarters for the Schnabel car operators during the transportation of the vessels as some can take up to a week or more depending on the destination.
